How to Achieve Efficient Recycling and High-Value Utilization of Steel-Free Tire Chips?

Hours Posted on

Wondering how to break through recycling bottlenecks for steel-free tire chips (such as passenger car run-flat tires, bicycle tires, and engineering rubber tire chips) while balancing processing efficiency and resource value? This article combines the latest European and American on-site cases to break down the recycling processes, equipment adaptation, and market paths of steel-free tire chips, helping you grasp the core logic of this niche track.

I. Why Has Steel-Free Tire Chip Recycling Become a New Trend?

The global penetration rate of steel-free tires (especially run-flat tires) is increasing year by year, leading to an annual increment of over 30 million tons of steel-free tire chips. Since these chips contain no steel, they eliminate the need for magnetic separation, resulting in a simpler recycling process and higher added value of recycled products:

  • Higher rubber purity, which can be directly ground into high-grade rubber powder for high-end rubber products, medical supplies, and other fields;
  • 18% lower processing energy consumption than steel-containing tire chips, reducing the cost per ton by 20-30 euros;
  • Aligns with the industrial trends of lightweight and environmental protection, with market demand growing much faster than traditional tire recycling.

Core advantage: No need for complex sorting equipment, lower initial investment threshold, and more diverse recycling paths. It can not only produce rubber powder and reclaimed rubber but also be used for pyrolysis oil production and asphalt modification, offering greater profit flexibility.

II. Foreign Cases: On-Site Practice of Steel-Free Tire Chip Recycling

Case 1: “Rubber Powder-3D Printing Consumables” Closed-Loop Plant in Rotterdam, Netherlands

Recycled Rubber 3D, a Dutch company, built a steel-free tire chip recycling plant in Rotterdam focusing on high-value conversion. It processes 150 tons of steel-free tire chips per day, with its core product being rubber consumables specifically for 3D printing.

  • Process Configuration: Adopts an integrated production line of “fine crushing + low-temperature grinding + modification treatment”. A German Weima single-shaft fine crusher crushes the chips to below 20mm, followed by an -80℃ low-temperature cryogenic grinder (Swiss Retsch equipment) to process them into 100-mesh ultra-fine rubber powder. Finally, environmental modifiers are added to enhance the powder’s plasticity and adhesion.
  • Quality Control: A laser particle size analyzer monitors the rubber powder particle size in real-time, ensuring a particle size deviation of ≤5%. The product has passed both EU RoHS and REACH certifications, meeting the 3D printing requirements of high-end fields such as medical care and food packaging.
  • Profit Model: The 3D printing rubber consumables are priced at 2,800 euros per ton, 4 times that of ordinary rubber powder. Supplied to major European 3D printing service providers, the annual sales exceed 12 million euros, with an investment payback period of only 18 months.

Case 2: “Reclaimed Rubber-Auto Parts” Production Base in Georgia, USA

Rubber Recycling Technologies, an American company, operates a plant in Georgia that produces 50,000 tons of reclaimed rubber annually from steel-free tire chips, mainly supplying automakers such as Tesla and Ford for the production of auto weatherstripping, floor mats, and other parts.

  • Customized Design: To meet the requirements for rubber elasticity and wear resistance in auto parts, it adopts a “mechanical devulcanization + dynamic vulcanization” process, equipped with an American CM Shredders dual-shaft devulcanizer. After devulcanization, the rubber powder is mixed with virgin rubber in a 3:7 ratio, and the produced reclaimed rubber achieves over 90% of the performance of virgin rubber.
  • Energy Optimization: Utilizing waste heat generated during devulcanization, a 200kW waste heat recovery system is built to meet 60% of the plant’s electricity demand. A water circulation cooling system is also adopted, achieving a 100% wastewater reuse rate.
  • Market Cooperation: Long-term supply agreements are signed with automakers, with reclaimed rubber priced at approximately 850 US dollars per ton and an annual net profit exceeding 3 million US dollars. It also enjoys tax credits for recycled materials under the US Inflation Reduction Act, saving about 800,000 US dollars annually.

Case 3: “Asphalt Modification-Municipal Engineering” Supporting Plant in Vienna, Austria

Asfalt Recycling, an Austrian company, built a plant in Vienna specifically to supply steel-free tire chip modified asphalt for municipal road projects. It processes 200 tons of steel-free tire chips per day and supplies 300,000 tons of modified asphalt annually.

  • Core Technology: Adopts an “activated rubber powder + high-temperature mixing” process, mixing 80-mesh steel-free tire rubber powder with base asphalt in a 15:85 ratio, and stirring and activating at 180℃ for 4 hours. The produced modified asphalt has 50% improved crack resistance and wear resistance, extending its service life by 3-5 years.
  • Compliant Operation: Strictly follows EU asphalt material standards, with products passing EN 13924 certification. The production process is equipped with an efficient asphalt fume treatment system, achieving VOCs emissions <10mg/m³ and dust emissions <2mg/m³, fully complying with the environmental requirements of municipal engineering.
  • Profit Logic: The price of modified asphalt is 120 euros per ton higher than that of ordinary asphalt, prioritizing supply to road renovation projects in Vienna and surrounding cities, with an annual income exceeding 36 million euros. It also receives green infrastructure subsidies from the Austrian government, amounting to approximately 2 million euros annually.

III. Core Technical Details of Steel-Free Tire Chip Recycling

Crushing and Grinding: Matching Different Recycling Needs

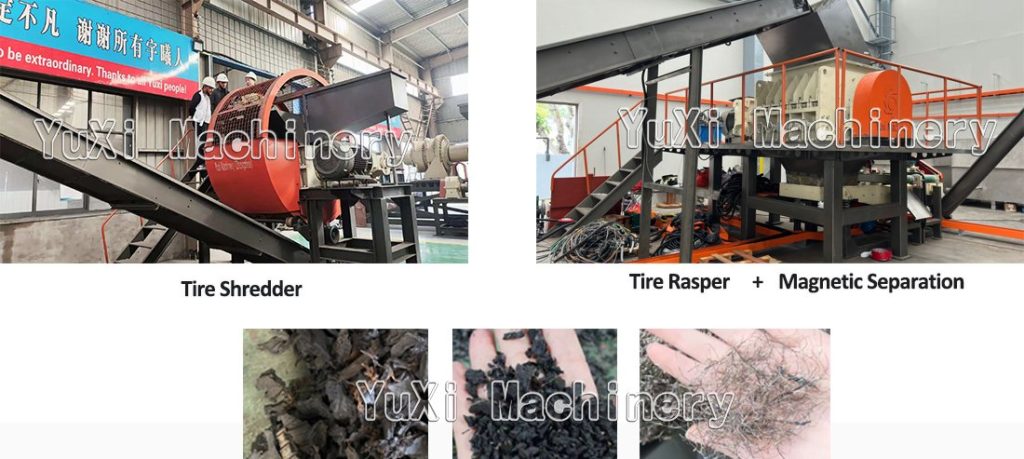

  • Low-value-added products (e.g., road base fillers): Adopt a single-shaft crusher to crush to 5-20mm. The blade material is AISI D2 tool steel, with a service life of 12,000 tons;
  • High-value-added products (e.g., ultra-fine rubber powder): Need to be equipped with a “crusher + cryogenic grinder” to grind to 80-200 mesh, ensuring uniform rubber powder particle size and a rubber molecular chain integrity retention rate of ≥85%.

Modification Treatment: Enhancing Product Added Value

  • 3D printing/medical fields: Add silane coupling agents and environmental plasticizers to improve the fluidity and biocompatibility of rubber powder;
  • Auto parts field: Adopt mechanical devulcanization + dynamic vulcanization process, with devulcanization temperature controlled at 120-140℃ and vulcanization time of 30-40 minutes, ensuring the elasticity and wear resistance of reclaimed rubber;
  • Asphalt modification field: Add activators (e.g., coumarone-indene resin) to activate the surface activity of rubber powder at high temperatures and enhance adhesion with asphalt.

Environmental Control: Focusing on VOCs and Dust Treatment

  • Dust treatment: Adopt a two-stage process of pulse bag filter + cyclone separator to ensure dust emissions <3mg/m³;
  • VOCs treatment: Adopt a combined device of “activated carbon adsorption + photo-oxidation catalysis” with a VOCs removal rate of ≥95%;
  • Noise control: Crushing and grinding equipment are equipped with sound insulation enclosures, with noise ≤70dB(A).

IV. Frequently Asked Questions (FAQ)

What is the initial investment for a steel-free tire chip recycling plant?

Depending on product positioning, the investment for a 100-ton/day low-value-added plant (producing road base fillers) is about 400,000-600,000 euros, while that for a 100-ton/day high-value-added plant (producing ultra-fine rubber powder) is about 1.2-1.5 million euros.

How many operators does the plant need?

A 150-ton/day plant, adopting a PLC automatic control system, only needs 4-5 operators (1 for feeding, 1 for central control, 2 for finished product processing, 1 for equipment maintenance), and can realize 24-hour continuous operation.

What are the main market demands for recycled products from steel-free tire chips?

  • High-end rubber powder: 3D printing, medical supplies, high-end rubber products, with a global annual demand growth rate of over 25%;
  • Reclaimed rubber: Auto parts, seals, conveyor belts, with an annual demand of 8 million tons in European and American markets;
  • Modified asphalt: Municipal roads, highways, with about 30% of asphalt projects in the EU using rubber-modified asphalt annually.

What are the core environmental indicators that the plant needs to meet?

  • Dust emissions <3mg/m³
  • VOCs emissions <10mg/m³
  • Wastewater reuse rate 100%
  • Noise ≤70dB(A)

With the advantages of “simple process, high added value, and strong environmental protection”, steel-free tire chip recycling is becoming a niche blue ocean in the tire recycling field. From 3D printing consumables in the Netherlands to auto parts in the United States, these foreign cases prove that with accurate market positioning and optimized process configuration, steel-free tire chips can be transformed from “waste” into “high-value resources”. With the popularization of steel-free tires, the market space of this track will continue to expand, bringing new profit growth points for environmental protection enterprises.
