A truck tire looks simple from the outside, but it is one of the more difficult materials in a tire recycling plant. The rubber is thick, the tire body is heavy, and the bead wire is concentrated in a way that can punish a light-duty shredder. That is why the real buying question is rarely “Which shredder is cheapest?” It is usually “What route will keep the line feeding, cutting and discharging predictably every day?”
Quickly answer: for truck and bus tire recycling,you should choose a tire crusher equipped with a heavy cutting chamber,a strong shaft and blade,a controllable screening device,and sufficient feeding,discharge space and maintenance space.
Why truck tires need a different shredding approach
Passenger tires may be processed directly in many primary shredding layouts. Truck tires are different. A higher percentage of steel, stronger bead areas and larger tire bodies increase torque demand and create more stress on blades, reducers and feeding equipment. YUXI’s tire recycling equipment page also treats truck and bus tires separately, noting that wire drawing, bead cutting or tire cutting is often recommended before shredding to reduce cutting load.
The shredder is only one part of the system so that the distinction is very improtant.A truck tire line also needs a realistic loading method, space for pre-cut or debeaded material, a way to control oversized output and a downstream path for steel, rubber and fiber separation.
Buyer note: when the feedstock is mostly all-steel radial truck tires, the first design decision should be the pretreatment route, not the motor power. A larger motor cannot fully solve bead wire wrapping, unstable feeding or mismatched output size.
A YUXI-style equipment route for truck tire recycling
For projects based on YUXI tire recycling equipment, the front-end route normally starts by confirming tire type, steel content, target discharge size and the final product. A TDF chip project does not need the same downstream machines as a crumb rubber or rubber powder plant.
Where bead wire protection is important, a tire wire drawing machine can pull bead steel wire from prepared tire rings before cutting or shredding. Where the project needs to open the bead or sidewall area first, the waste tire bead cutting machine helps reduce direct blade stress from concentrated steel rings.
For large all-steel truck tires, agricultural tires or oversized tires that are awkward to feed directly, a tire cutting machine can turn whole tires into manageable sections. After that, the YUXI tire shredder machine uses a twin-shaft, low-speed, high-torque shearing structure with a disc screen return concept to control oversized pieces and keep output more consistent.
| Incoming tire condition | Recommended front-end route | Reason |
|---|---|---|
| Truck and bus tires with heavy bead wire | Wire drawing or bead cutting → tire shredder | Reduces hard steel impact and helps protect shredder blades. |
| Mixed passenger and truck tires | Sorting → adaptable feeding → primary shredder with screen return | Improves feed rhythm and reduces uneven discharge. |
| Large all-steel or thick tire bodies | Hydraulic cutting → primary shredding | Makes oversized tires easier and safer to feed. |
| TDF chip production | Pre-processing as needed → shredder → screen/return → optional magnetic separation | Chip size consistency and steel tolerance determine market acceptance. |

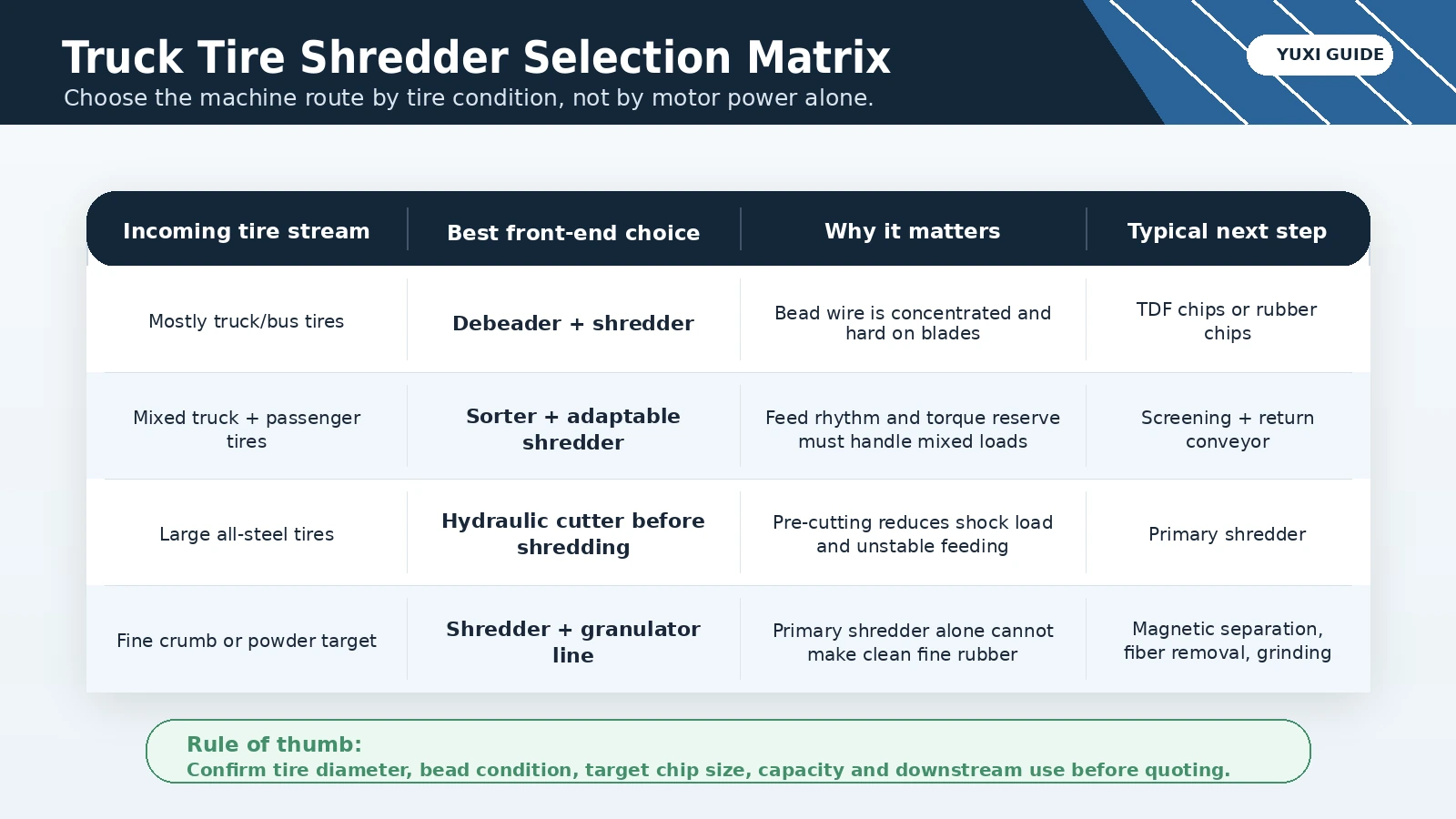

Selection matrix: what to confirm before quotation
A practical truck tire shredder quotation should not be based on the machine name alone. The same phrase, “truck tire shredder machine,” can describe very different layouts depending on tire diameter, steel content, target chip size and capacity.
Send these details before asking for price:
- Maximum tire outer diameter, width and weight.
- Truck tire ratio in the feedstock: occasional, mixed, or mostly truck/bus tires.
- Whether bead wire will be removed, cut, or sent into the shredder.
- Required output size: rough shreds, TDF chips, rubber chips, granulator feedstock or powder-line feed.
- Hourly capacity target and daily operating hours.
- Downstream plan: TDF shipment, magnetic separation, granulation, fiber removal or grinding.
- Workshop space, power supply, loading method and maintenance access.

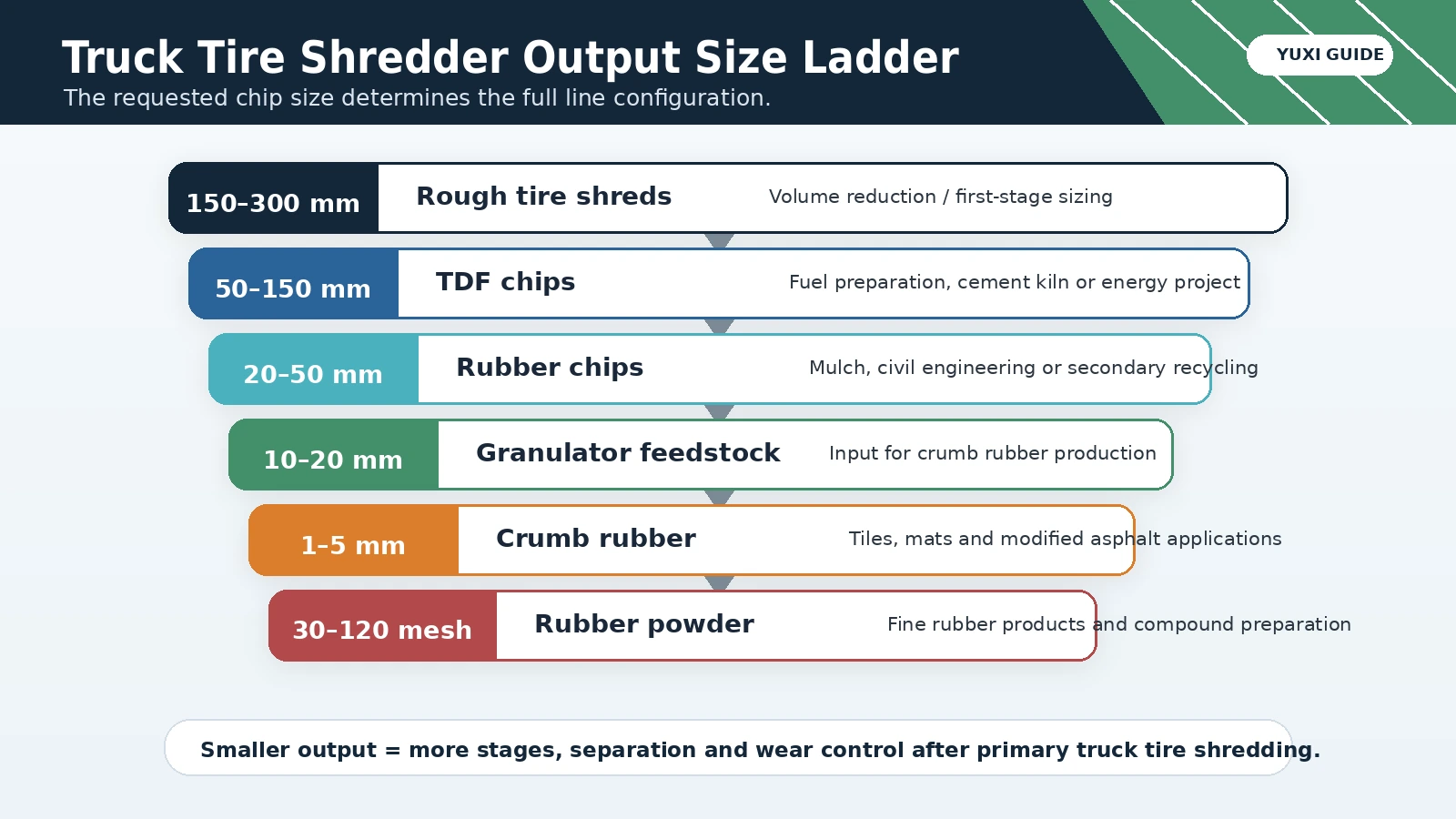

Output size decides the whole line
Truck tire shredding is not finished just because the tire is smaller. The value of the output depends on whether it matches the next buyer or next machine. EPA materials identify tire-derived fuel, civil engineering applications and ground rubber/rubberized asphalt as major scrap tire markets, which means the shredder should be selected with the end market in mind rather than as an isolated machine.
If the target is a Tire TDF Plant, the line usually focuses on larger fuel chips and stable oversize control. If the target is landscaping or civil-engineering rubber chips, a Tire Wire Free Mulch Plant needs additional steel liberation, magnetic separation and screening. For smaller material, a Tire Rubber Crumb Plant or Tire Rubber Powder Plant requires more downstream granulation, fiber separation and grinding.
| Output target | Typical purpose | Line implication |
|---|---|---|
| Rough tire shreds | Volume reduction, first-stage sizing | Primary shredder focus; screening may be basic or project-specific. |
| TDF chips | Alternative fuel preparation | Requires controlled chip size, possible return conveyor and metal handling. |
| Rubber chips / mulch | Landscaping, civil engineering, secondary recycling | Needs further steel liberation, magnetic separation and screening. |
| Granulator feedstock | Crumb rubber production | Primary output must match the granulator and separation system. |
| Crumb rubber / powder | Rubber products, asphalt modification, compounds | require multiple downstream size-reduction and cleaning stages. |
Machine features that matter in truck tire shredding
Low-speed and high-torque cutting
Truck tires are elastic and reinforced with steel. The low-speed, high-torque double-shaft shredder grabs and shears tires instead of relying on high-speed impact. This is better suited to irregular rubber material and sudden feeding load changes.
Blade structure and replacement plan
Blade thickness, alloy selection, hook geometry and spacer arrangement influence output size, cutting stability and maintenance cost. A buyer should ask for spare blade plans and access space, not only a motor list.
Screening and return system
Oversized discharge is common when a tire is tough, elastic or only partially cut. A disc screen and return conveyor can send large pieces back for another cut, reducing manual sorting and improving downstream consistency.
Feeding and layout
Truck tires are heavy. Conveyor angle, hopper opening, forklift access, emergency stop positions, inspection platforms and discharge height should be checked on the layout drawing before purchase.
Steel management
Steel can be handled before shredding through bead wire removal, during shredding through stronger blades and torque reserve, or after shredding through magnetic separation. The right choice depends on final output and acceptable steel residue.
Common buying mistakes
- Buying by motor power only. Torque, shaft design, blade structure, screen return and feeding method matter more than a single power number.
- Ignoring bead wire. Heavy bead wire can raise wear, cause wrapping and reduce output stability.
- Choosing one output size for every market. TDF, mulch, crumb rubber and powder need different process routes.
- Forgetting maintenance access. A shredder that is hard to inspect will cost more in downtime.
- Underestimating upstream labor. A truck tire line may need sorting, cutting, debeading or loader support to keep the shredder fed steadily.
FAQ: Truck Tire Shredder
Can the truck tire shredder process whole truck tires?
It can be configured as a whole tire or semi-finished truck tire,but the correct setting depends on the maximum tire diameter,steel content,ball condition and target output size. For many heavy radial truck tires,it is recommended to remove the bead line,cut bead or pre-cut before crushing.
What is the best type of shredder for truck tires?
Heavy-duty ,double-shaft shredders are usually used to shred the tires od blarge trucks because they use low-speed,high-torque shearing.The exact model should be selected according to the tire size,hourly capacity,output target and downstream flow.
Do I need a tire remover before the shredder?
If the project treats many truck or bus tires with strong bead wire, the bead remover or bead cutter can reduce the impact of the thick steel and help protect the downstream blade. If the tire flow is mostly smaller passenger tires, direct crushing may be practical depending on the design of the shredder.
What output size is best for TDF?
TDF projects commonly use larger tire chips than crumb rubber plants. The exact size and steel tolerance should be confirmed with the fuel users, because cement kilns, boilers and other industrial users may have their own specifications.
What information does YUXI need to recommend the configuration?
Share tire photos, tire type, maximum tire diameter, truck tire percentage, required output size, capacity target, downstream product, power supply and workshop layout. That information allows a practical line proposal instead of a generic machine list.
Need a truck tire shredding layout?
Send the tire size range, truck tire ratio, output target and workshop space. YUXI can help match pretreatment equipment, primary shredder, screen return, conveyors and downstream separation for the project.
References And Source Notes
- U.S. EPA Tire-Derived Fuel guidance and EPA Tire-Derived Fuel FAQ: waste tire markets include tire-derived fuel, civil engineering applications, ground rubber and rubberized asphalt; EPA also discusses tire storage, fire and regulatory issues.
- USTMA tire recycling resources and USTMA 2023 End-of-Life Tire Management Report page: in 2023, about 79% of U.S. end-of-life tires entered recycling and reclaiming markets, with ground rubber and infrastructure uses continuing to grow.
- CalRecycle Tire-Derived Aggregate resources: TDA applications include lightweight fill, vibration mitigation, road repair and embankment construction, and permeable drainage material.
- ASTM D6270: standard practice covering the use of processed or whole scrap tires in civil engineering applications.
- YUXI product information was distilled from its tire recycling equipment, tire shredder, tire wire drawing, tire cutting and bead cutting product pages.
